Seiko Magic Lever Mechanism

Seiko Magic Lever Mechanism by Mechanistic

Printed On Ender 3 V3 SE Using Filament Filameline PLA

Printed without Supports, Printed without Rafts, Infill 20 %

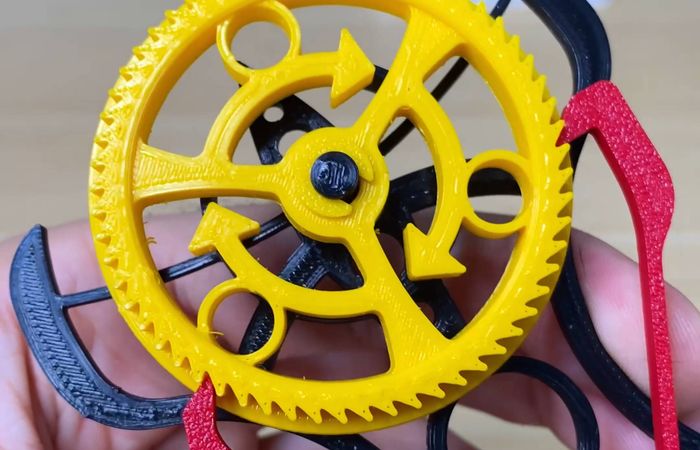

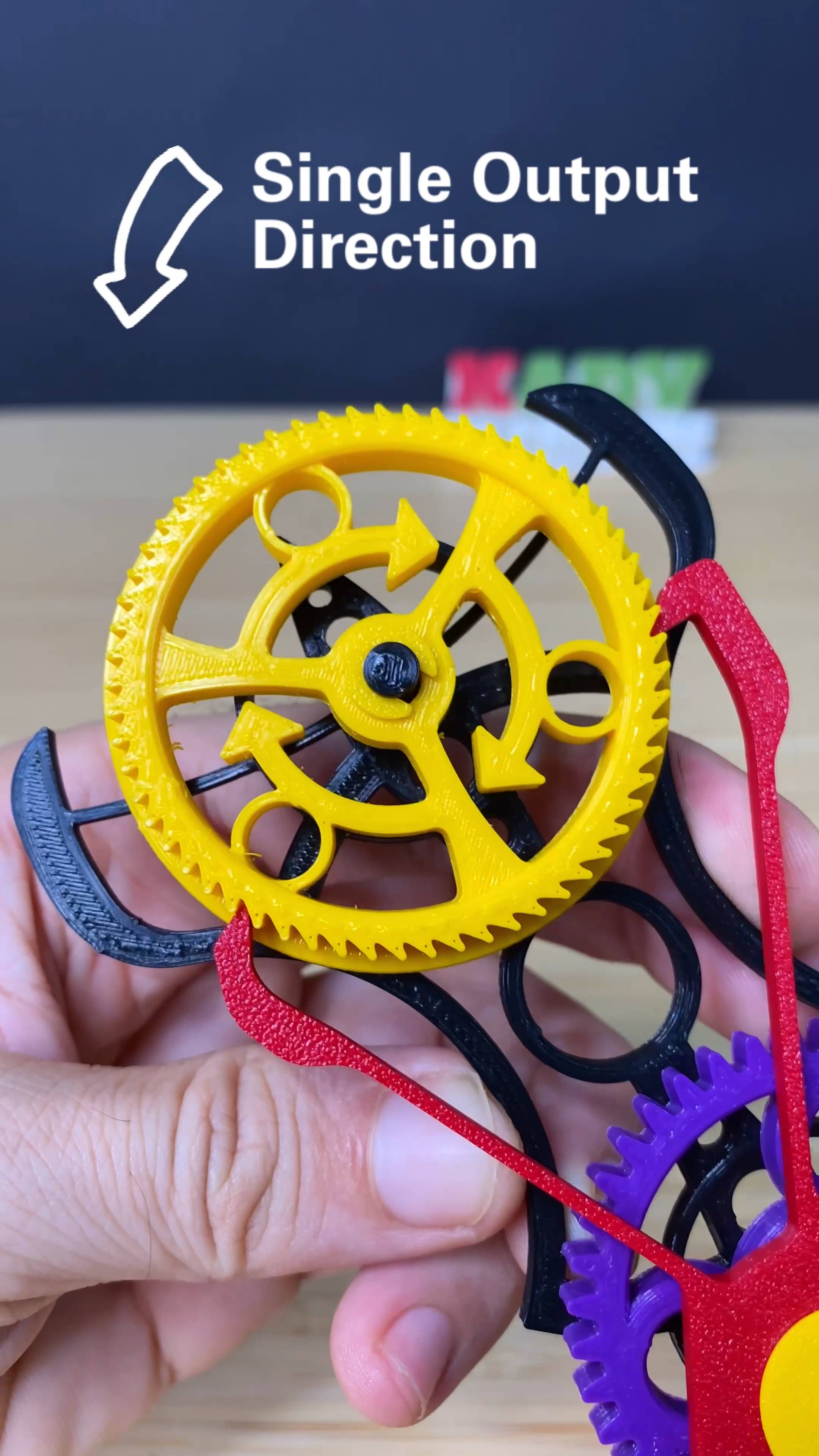

The Seiko's "Magic Lever" is probably the most elegant, simple, and brilliant two to one way mechanism. It has only three core components, input gear, magic lever, and output gear, to achieve a "mechanical rectification".

Print everything with a standard 0.4mm nozzle, with any layer height.

There is a folder named "Fitting Variants" where you can find files with witih a number at the end of each name.

+1 and +2 variats have smaller pivot hole diameter, hence a tighter fit

-1 and -2 variants have larger pivot hole diameter for a looser fit
